首頁 >> 產品中心 >> 配電自動化饋線終端（FTU）
配電自動化饋線終端（FTU）

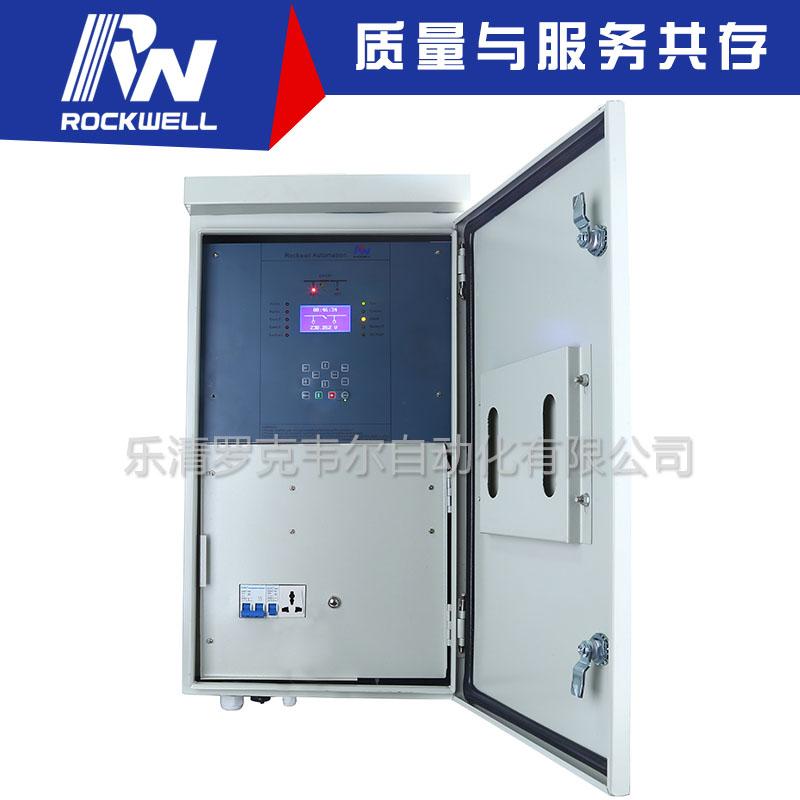

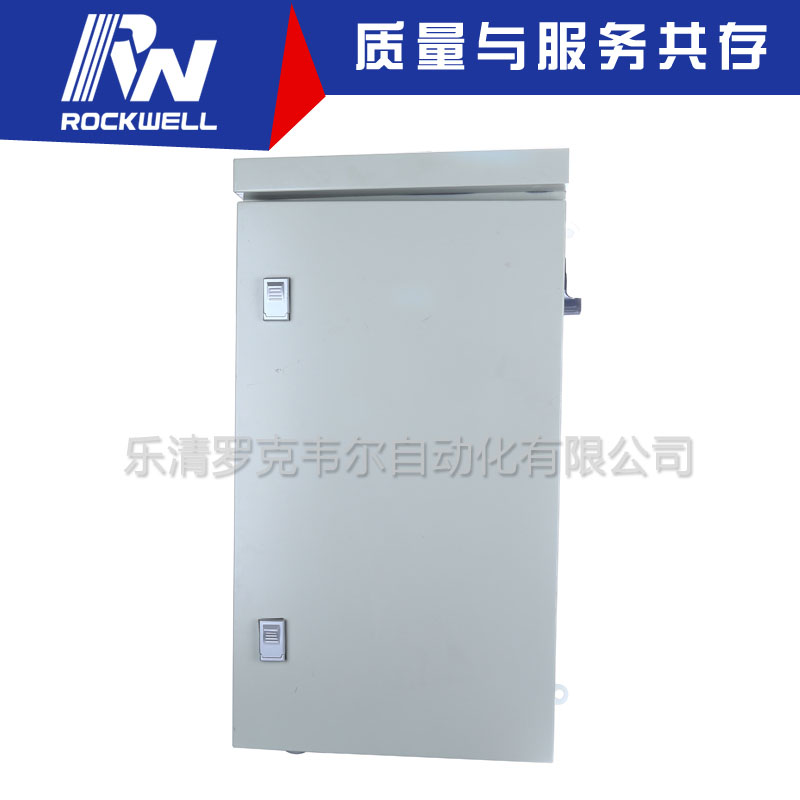

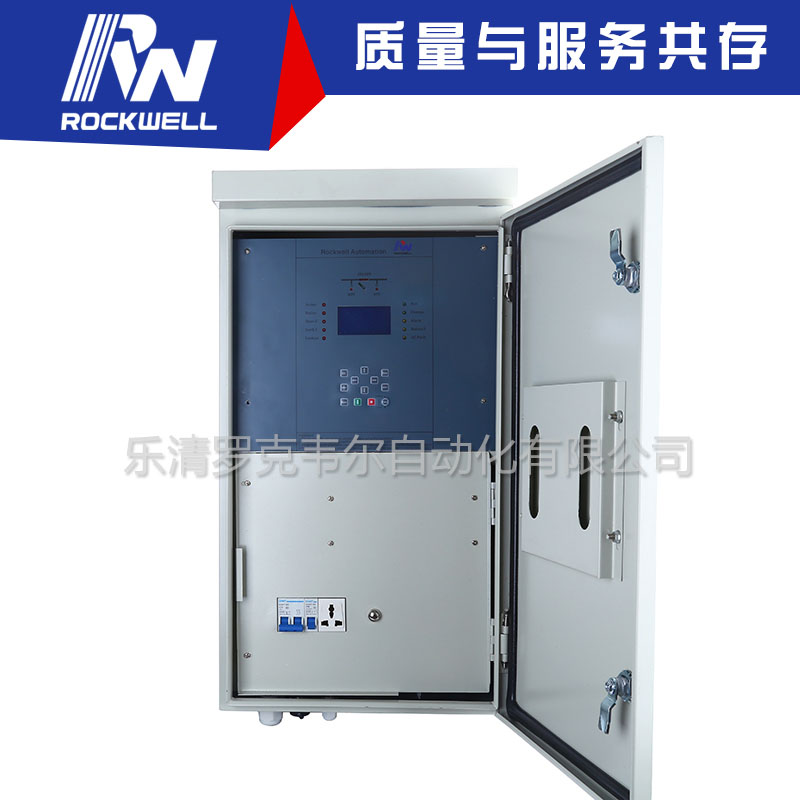

出口標準版重合閘控制器-self-standard type controller
產品簡介
This ROCKWELL self-standard type controller which is used for medium voltage overhead line monitoring and controlling, which can be equipped with pole mounted switchgear achieve of automatic monitoring, fault analysis and event records, and drive switch to isolate off line fault, recovery gird safety running.
It’s suitable for up to 35kV outdoor switchgear using, include: vacuum circuit breakers, oil circuit breakers and gas circuit breakers.
This type of product gathering with all the functions like:
line protection, controlling, measurement and monitoring of voltage and current signals.
This recloser controller support 8 channels sampling, can be customized choose additional sampling like conventional Voltage transformer or Voltage sensor.
It supports two ports communication.
出口標準版重合閘控制器 self-standard type controller的概述
    出口標準版重合閘控制器是中壓架空線路電網的監控單元，與柱上開關配合實現線路狀態自動監控、故障分析、判斷記錄，具備驅動開關保護線路設備安全，切斷線路故障及自動恢復線路運行等功能。適用于35KV及以下戶外開關設備，包括真空斷路器，油斷路器及氣體斷路器。

    出口標準版重合閘控制器是集線路保護、控制、電壓電流信號測量、監視于一體的綜合自動化戶外測控裝置。具有處理單條架空線路所有電壓電流信號于一體及開關遠程操作的全部功能。本版本支持8路采樣通道，可以根據需求選擇電壓互感器采樣或者電壓傳感器采樣。同時支持兩路通訊，滿足大多數用戶的需要。

This ROCKWELL self-standard type controller which is used for medium voltage overhead line monitoring and controlling, which can be equipped with pole mounted switchgear achieve of automatic monitoring, fault analysis and event records, and drive switch to isolate off line fault, recovery gird safety running.

It’s suitable for up to 35kV outdoor switchgear using, include: vacuum circuit breakers, oil circuit breakers and gas circuit breakers.

This type of product gathering with all the functions like:

line protection, controlling, measurement and monitoring of voltage and current signals.

This recloser controller support 8 channels sampling, can be customized choose additional sampling like conventional Voltage transformer or Voltage sensor.

It supports two ports communication.

出口標準版重合閘控制器 self-standard type controller的功能

1、具有速斷、限時速斷、定時限過流的三段式保護功能，同時每段有低壓閉鎖、復壓閉鎖和方向過流保護模式可供選擇，而且具備反時限過流保護；

2、具有手合加速段保護功能，斷路器合于故障加速跳閘，并閉鎖合閘；

3、具有0~4次自動重合閘功能，滿足“分-t1-合分-t2-合分-t3-合分-t4-合分-閉鎖”工作特性，具有重合閘后加速功能，重合次數、延時可自由設定。另外，相間過流重合閘和零序過流重合閘是分開的；

4、具有零序保護功能和靈敏接地保護功能，同時帶有方向過流保護；

5、具有涌流抑制保護功能；

6、具有過負荷保護功能；

7、熱線保護功能；

8、具有兩段負序過流保護功能；

9、具有過壓分閘保護功能；

10、具有低壓分閘保護功能；

11、具有零序過壓分閘保護功能；

12、具有高溫保護功能； （根據用戶需求添加）

13、具有重瓦斯保護功能； （根據用戶需求添加）

14、其它功能：事件記錄、實時時鐘、實時狀態查詢；

15、可選功能：電壓傳感器功能、遠方操作功能、雙PT功能、CT防開路功能、智能手機控制（藍牙）、GPRS無線通訊、手機短信（GSM）。

Detail Functions:

1、with Instantaneous over current protection, definite time over current protection and over current protection protection, over current

three-stage current protection, low voltage component block, composite voltage component block or direction component block is available

 for each section, pulse inverse time limit over current protection;

2、with Manual closed accelerating protection, the breaker will trip fast when it’s closed in fault, and it will trip and lockout close operation;

3、with 0 to 4 shots reclosing, “O-t1-CO-t2-CO-t3-CO-t4-CO-lockout” , Reclose accelerating protection, shots setting, delay time setting;

independent phase over current reclosing and zero sequence over current reclosing;

4、with zero sequence over current protection, E/F, SEF, with directional protection model for  selection ;

5、with cold load protection ;

6、with over load protection;

7、with hot-line-tag protection;

8、with two-stage negative sequence over current protection;

9、with over-voltage protection ;

10、with under-voltage protection ;（optional）

11、with residual voltage protection ;

12、with relay for additional transformer protection high temperature input; （optional/definable）

13、with relay for additional transformer protection heavy gas input ; （optional/definable）

14、Event record, Real-time sync, Real time checking,

15、Optional functions:

Optional channel for voltage sensor, Remote operating, Double-PT, protection for CT circuit, intelligent phone control/blue booth,

 GPRS communication, Mobile-phone message/GSM.
